7. Trade-off risk assessment
Recent advances in ecosystem service modeling focus on linking ecosystem service delivery, their associated values and trade-offs across services (e.g. Integrated Valuation of Ecosystem Services and Trade-offs InVEST, and Artifical Intelligence for Ecosystem Services ARIES). Bastian et al (2011) made a clear distinction between potential supply of ecosystem services (based on the natural capacity of an ecosystem), and the actual delivery.Van der Biest et al (2013) discern three different levels of trade-offs between ecosystem services:
- first level trade-offs are generated by the biophysical potential of the ecosystem to deliver the different services (e.g. marshes have a higher capacity to provide biodiversity than deep water habitats); second-level trade-offs refer to the actual delivery within the study area, capturing biophysical potential trade-offs as well as land use and management based trade-offs (e.g. choosing to graze marshes determines which potential services are more and less delivered: food provision, biodiversity, carbon storage, etc.) and third-level trade-offs concern the final provision to society, depending on demand, accessibility, ecosystem service flow and generation of benefits (e.g. is the food actually sold, is the marsh accessed for recreation).
Using the supply scores of habitats, a trade-off risk indicator can be derived. In the case that (a portion of) an estuary is optimized entirely for supply of a single service, the differences between ES-supply distribution over habitats (Figure 10) will provoke trade-offs. For instance, “water for navigation” exhibits a high trade-off risk with biodiversity, cultural services and regulation of extreme events, since complete optimization to navigation would imply creating deep subtidal habitats at cost of shallow, intertidal and marsh habitats (and delivery of their services). The calculation is the sum of the habitat’s differences in supply between services or:
With:
- TESa-ESb= Trade-off between ESa and ESb
- SHiESx = Supply score of Habitat i for ESx

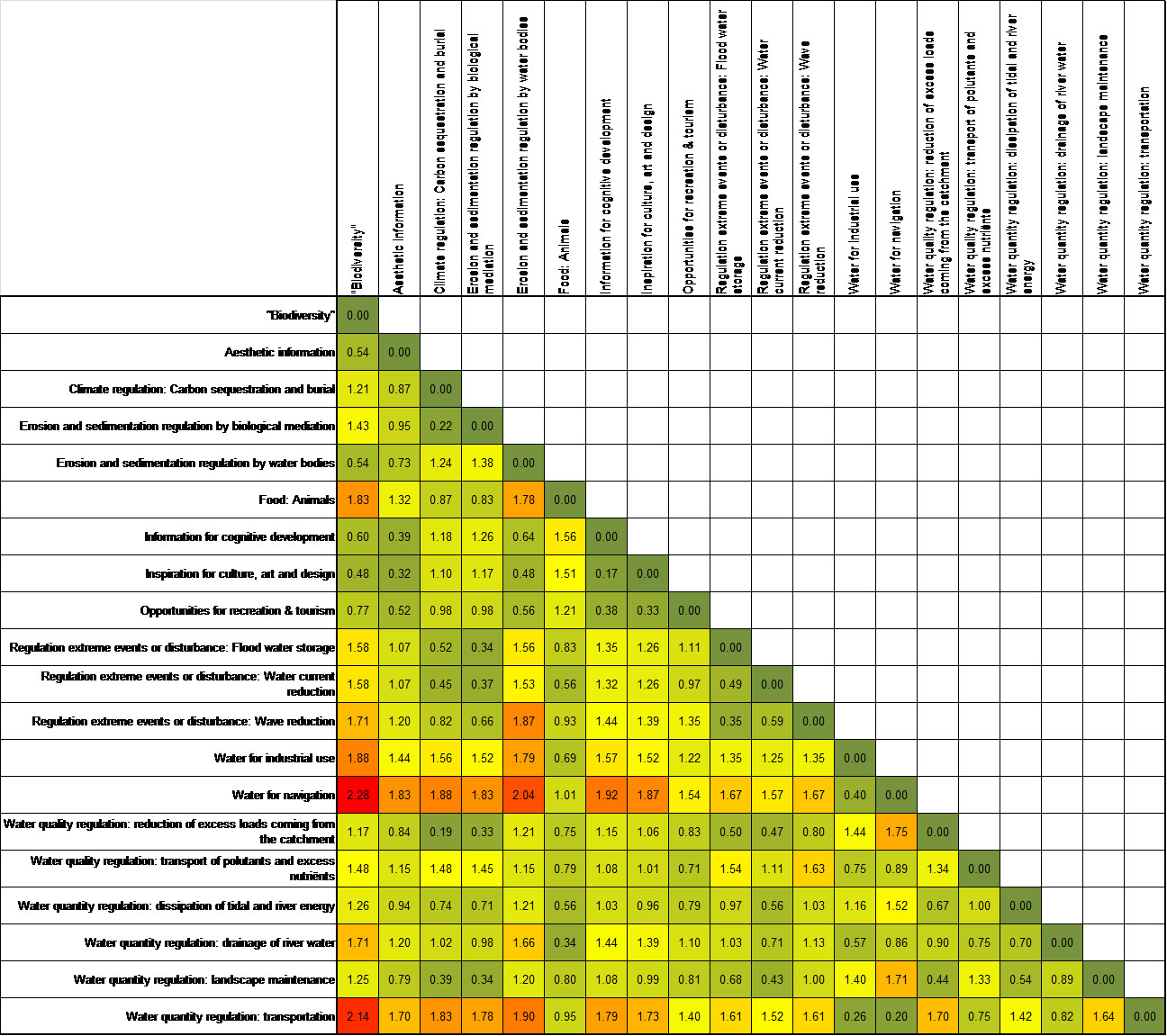

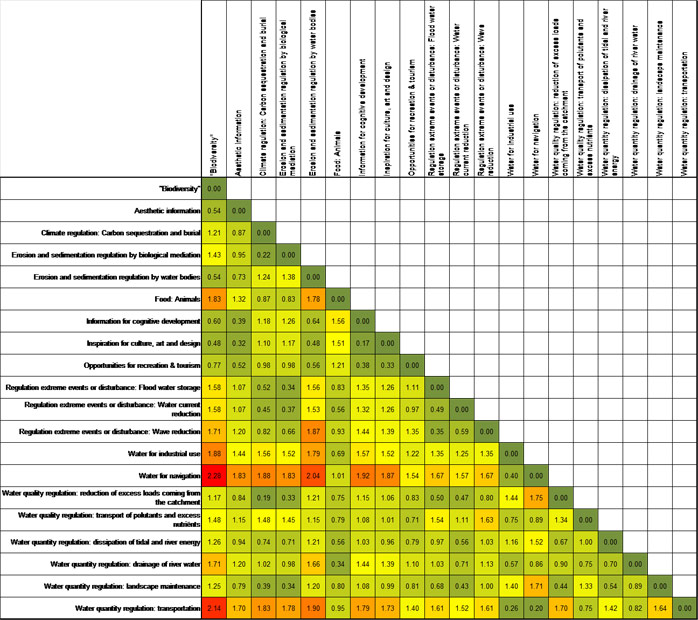

The trade-off risk analysis (Table 6) situates the highest risks with supporting services (“biodiversity”), exhibiting high trade-off risks with provisioning services and water quantity regulating services. These same provisioning and water quantity regulating services exhibit trade-off risks with regulation of sedimentation-erosion and extreme events or disturbance.
Synergies are mostly found among services within the same group (eg cultural services, regulation of extreme events or disturbance,…).
In practice these trade-offs might not be apparent (as second level trade-offs) for instance where an adequate amount of provisioning deep water habitat is present without impacting supply by other habitats.
Comparison with the inventory of conflicts between direct uses (“Conf lict Matrices: Comparisons For TIDE Estuaries”) reveals large similarities with this trade-off risk indicator. For instance, potential trade-offs occur between supporting / habitat services (“biodiversity”), sedimentation-erosion regulation, prevention of extreme events and disturbance on the one hand and provisioning and regulating services related to industrial use on the other hand. This is also reflected in the conflict matrix.
However, many potential synergies occur between (sets of) regulating services, cultural services and biodiversity.
Assessment of the trade-off risk is an important tool to capture potential conflicts of ‘direct uses’ (e.g. shipping, recreation, see “Conflict Matric es: Comparisons For TIDE Estuaries”) with the many non-use services (regulating services, supporting and habitat services). These essential services are rarely represented by stakeholders but can severely affect long-term use of the estuary, and therefore should be taken into account in management decisions. This trade-off risk assessment provides a useful screening to guide a localized trade-off analysis, aiming at conserving/restoring/compensating supply of all services and securing long-term multi-functional use of the estuary.
